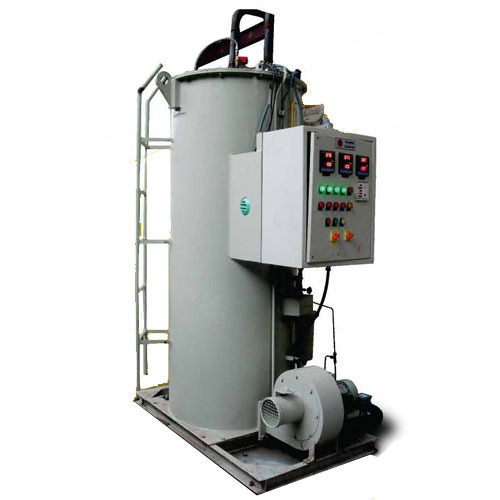

THERMIC FLUID HEATERS
15k+
Total Pieces Sold
5
Users Rating
THERMIC FLUID HEATERS
Additional Application
Textile & Leather Clothes. Dyes, Chemicals & Paints
Paper & Plastic. Food & Oil Processing. Automobile & Steel
|
Prarameter
|
Unit
|
TF - 200
|
TF - 400
|
TF - 600
|
|---|---|---|---|---|
|
Heat
|
Output Kcal/hr
|
2 Lac
|
4 Lac
|
6 Lac
|
|
Maximum Outlet Temperature
|
OC
|
300
|
300
|
300
|
|
Thermic Fluid Flow Rate
|
M3/hr
|
13
|
26
|
55
|
|
Thermic Efficiency On full Load at
280 OC as per BS 845 part 1
|
% on NCV
|
85+2
|
85+2
|
85+2
|
|
Fuel Consumption HSD / LDO of NCV
10500 Kcal/kg
|
Kg/Hr
|
22
|
44
|
68
|
|
Electric Load
|
HP (KW)
|
7.5(6)
|
12.5(10)
|
15.5(12)
|
|
Dimension Length Wieth Height
|
mm
mm
mm
|
1600
1000
2100
|
2100
1500
2600
|
2400
1700
3500
|
|
Dry Weight
|
kgs
|
800
|
1400
|
2800
|
